Condensate Pump
Condensate Pump
Regular price
$129.99 USD
Regular price
Sale price
$129.99 USD
Unit price
/
per
Shipping calculated at checkout.
9 reviews
Couldn't load pickup availability
5 Year Warranty
- 1.2 Gallons Per minute
- Low Profile
- Includes Hose
- Great for HVAC and Dehumidifiers
- Continuous duty 140 degrees Fahrenheit
- Maximum inlet temperature 160 degrees Fahrenheit
- Not suitable for contact with steam or gasses that exceed 160 degrees Fahrenheit

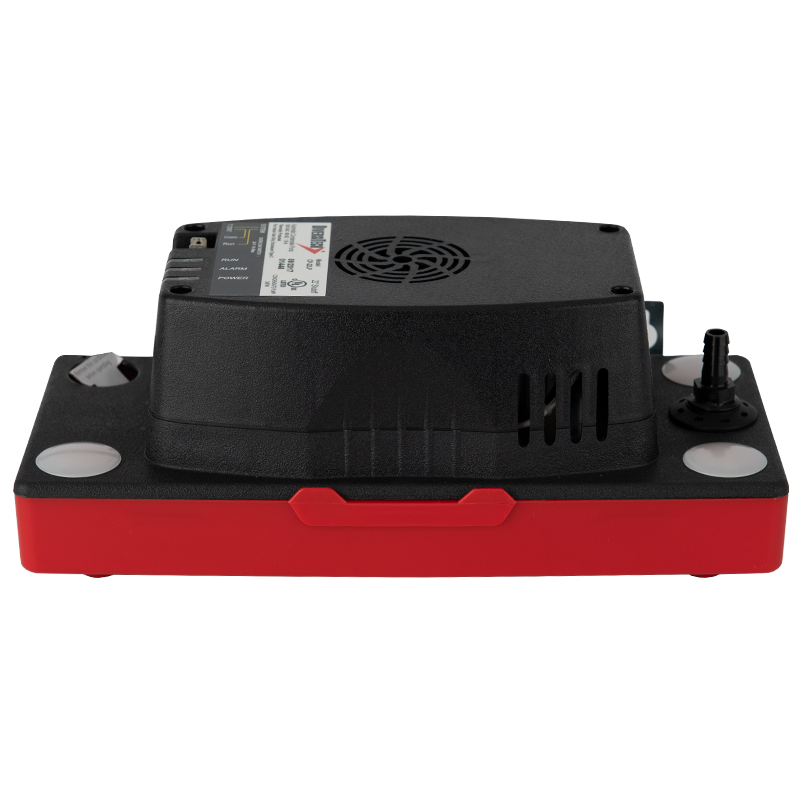

Overview for Diversitech CP-22LP
Suitable for use with condensate from high efficiency condensing furnaces and boilers which produce acidic condensate. 22' of lift compared to the typical 20'. Features include vibration dampening feet and motor mounts, metal hang tabs, four inlet holes, a clear indicator display, a float switch and check valve, and pan pill dispenser. Integrating the CP-22 into your system is easy. 1/4 inch quick connect terminals provide easy connection to the built in overflow switch. 3 terminals are provided allowing flexibility to connect air-handler shut-down and optional alarm as needed. The new CP-22LP comes packed with all the same great features found in the CP-22, but now in a low profile package. This pump is only 4 3/8 tall so it's a good fit for those instances where space is at a premium. The shorter reservoir holds 1/3 gallon. Suitable for use with condensate up to 160 degrees F.
- Check Valve - Removable check valve for easy cleaning.
- Vibration Isolation - An elastomeric motor mounting gasket dampens vibration.
- Pan Pill Dispenser - A pan tablet dispenser is included free with every pump. Perfectly compatible with DiversiTech's Pro-Treat pan tablets.
- Rubber Feet - Rubber feet dampen vibration which reduces noise.
- Four Inlet Holes - Four inlets versus two or three on other pumps provide the greatest installation versatility. Inlet holes have a reinforced wall for increased durability.
- A Float That Floats - A float manufactured from foamed polyethylene is a simple, chemical and environmentally resistant, long lasting float.
- Indicator Lights - Red, yellow, and green indicator lights show the pump status. Green for power applied, yellow for pump running, and red for high level alarm.
- Metal Hang Tabs - Shatterproof stainless steel hang tabs have hole-and-slot design for easy mounting. Tabs are located on convenient 8" centers.
P
Patrick Wall Easy installation/ hook up works great
B
Brent Sawyer Pump works great with Aprilaire dehumidifier.
J

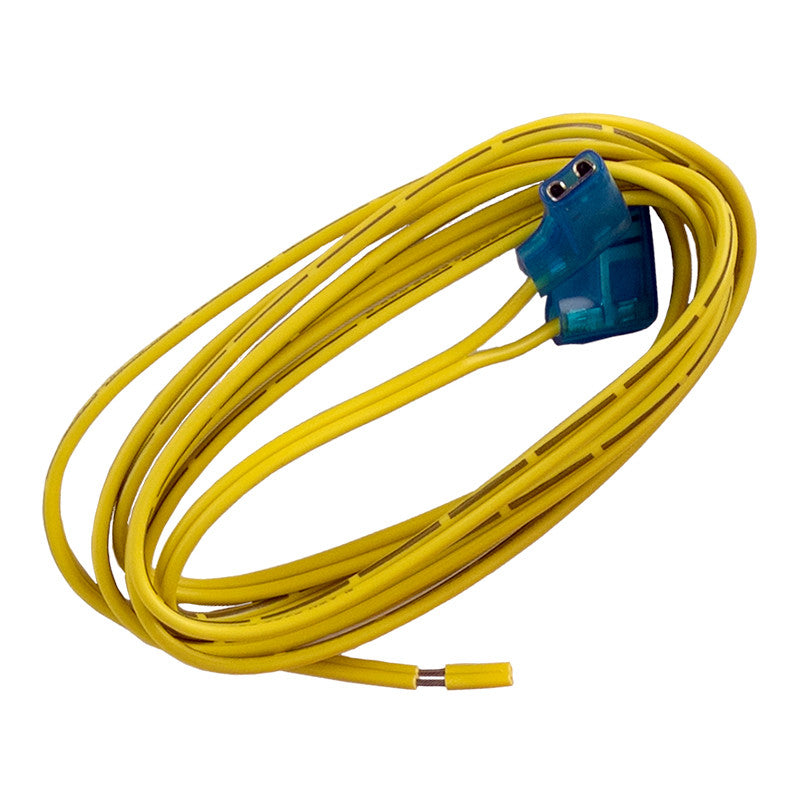

John Easy to install and works well. Comes with plenty of high-level cut-off wiring, and also plenty of hose.
