CHECK OUT THE NEW LOWER PRICE!!

• Standard Size: 4’ x 25’
• Covers 100 Sq Feet
• 10 lbs. per 100 sq. ft.
• R Value - R-8.73 but can be raised to R-12 with 3/4-inch fir strip

Insulation Vapor Barrier with Radiant Barrier

Crawl Space Ninja Insulation Vapor Barrier is a blanket insulation/vapor barrier designed to provide a thermal break and moisture barrier in crawl
spaces. Our Insulation Vapor Barrier can also reduce condensation, mold and degradation by controlling water vapor migration.

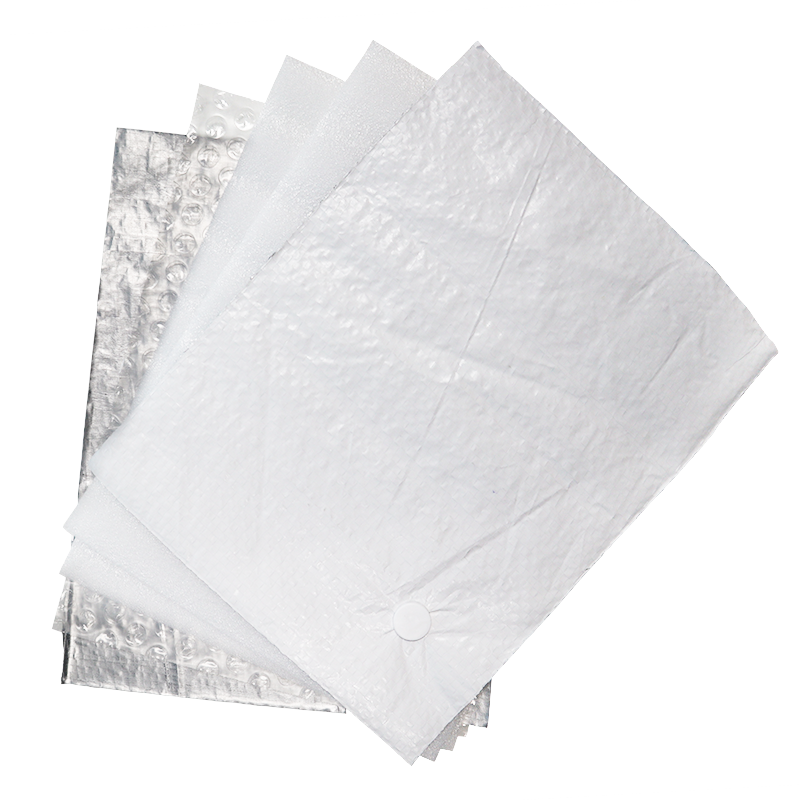

Insulation Vapor Barrier is a multi-layer blanket insulation. Insulation Vapor Barrier is manufactured using cross-woven polyethylene, high-density
closed-cell foam, a layer of high-density polyethylene bubble and reflective aluminum. These layers combine to provide consistent thermal and moisture protection.

• Standard Size: 4’ x 25’
• 10 lbs. per 100 sq. ft.
• R Value - R-8.73 but can be raised to R-12 with 3/4-inch fir strip

Frequently Asked Questions:

How Do I Use This?

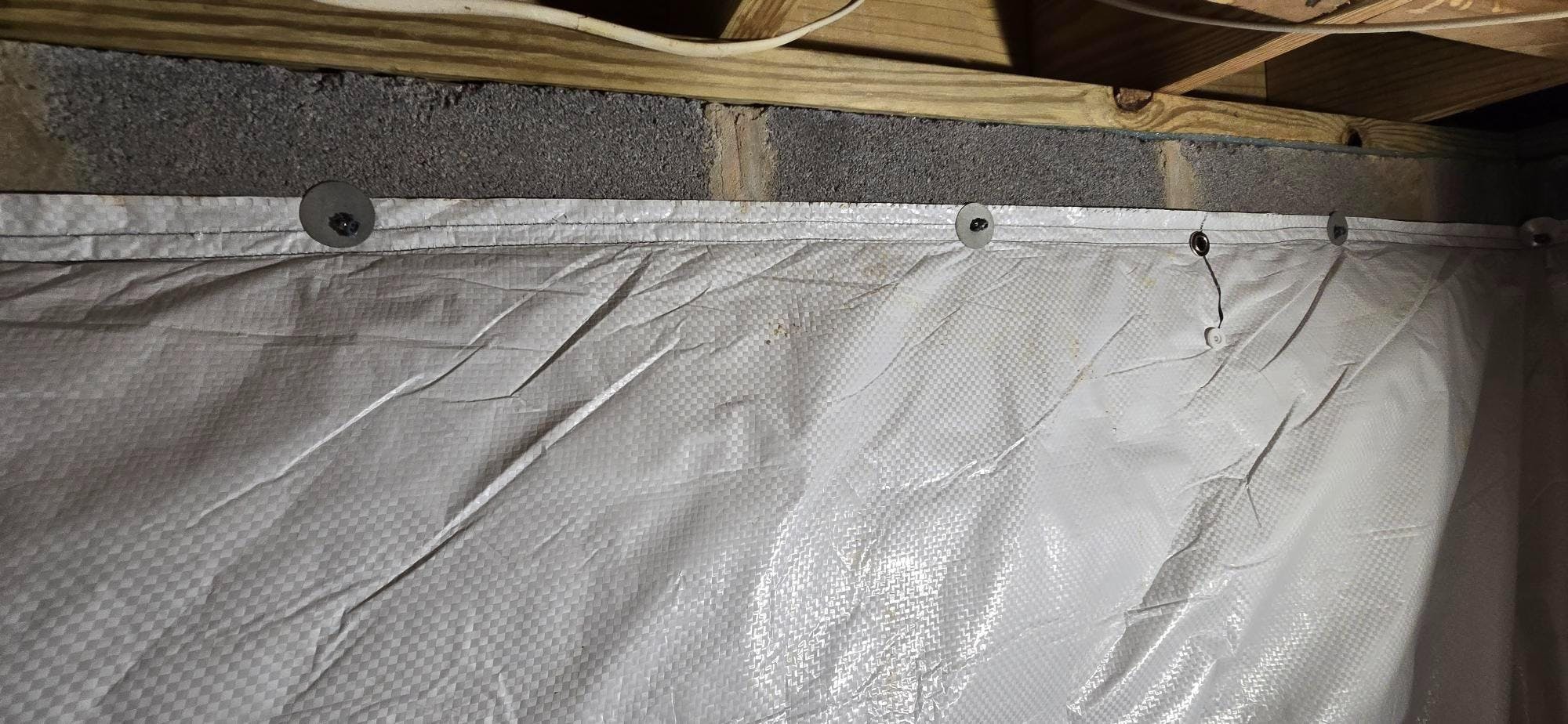

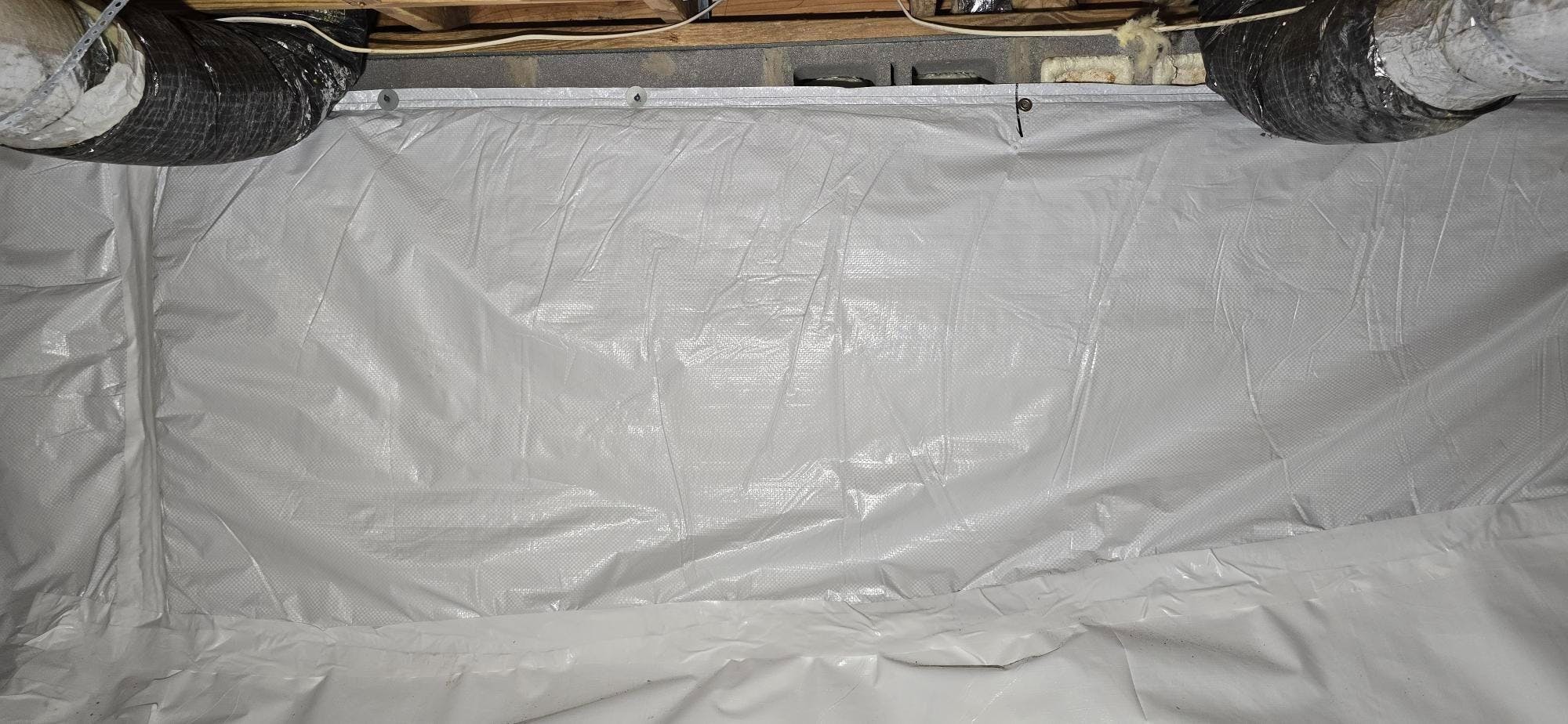

Apply this directly to your crawl space walls to insulate and protect them. It replaces foam board, saving you time and effort. Use it in combination with our 12 Mil vapor barrier on the floor and pillars for a complete encapsulation system.
If trimmed, simply seal the edges with Crawl Space Seam Tape to preserve its integrity.

1. Is the Insulation Vapor Barrier trimmable?
   • Yes, you can trim the Insulation Vapor Barrier to the height you need, just like you do with regular vapor barrier. However, if you do trim the Insulation Vapor Barrier, be sure to seal the trimmed edge with our Crawl Space Seam Tape.
2. Do I have to blow up this product before installation?
   • The Insulation Vapor Barrier does not need to be blown up before installation. It is ready for install upon delivery.
3. Is this product airtight?
   • The product is not airtight due to the sewing process to put all layers together and the process needed to attach the Insulation Vapor Barrier to your foundation walls. If you're worried about air or water getting between the layers, we recommend sealing all penetrations with our Crawl Space Seam Tape.
4. Will this product grow mold?
   • To the best of our knowledge, no. Since this product is made from plastic/foam, it is highly unlikely it will begin to grow mold over time.

Technical Data:

• ASTM C 1371 Standard Test Method for Determination of Emittance of Materials Near Room Temperature Using Portable Emissometers
• ASTM C518-02 Standard Test Method for Steady-State Thermal Transmission Properties by Means of the Heat Flow Meter Apparatus
• ASTM E96 Standard Test Methods for Water Vapor Transmission of Materials
• ASTM E1643 Standard Practice for Installation of Water Vapor Retarders Used in Contact with Earth or Granular Fill Under Concrete Slabs
• ASTM D412-98 Standard Test Methods for Vulcanized Rubber and Thermoplastic Elastomers-Tension
• ASTM D3575 Standard Test Methods for Flexible Cellular Materials Made From Olefin Polymers
• ASTM D751 Standard Test Methods for Coated Fabrics
• ASTM D1922 Standard Test Method for Propagation Tear Resistance of Plastic Film and Thin Sheeting by Pendulum Method
• R-VALUE PERFORMANCE ASTM C 1371 **SEE BELOW
• TENSILE STRENGTH & ELONGATION (BUBBLE PACK) ASTM D 412-98 136 PSI
• TENSILE STRENGTH (CROSS WOVEN POLYETHYLENE) ASTM D 751 (GRAB) 45 LBF/IN.
• COMPRESSION SET ASTM D 3575-00 4.3%
• COMPRESSION SET ASTM D 3575-10-16 3.2%
• BURSTING STRENGTH (BUBBLE PACK) ASTM D 751-00 (BALL BURST) 95.1 LBF
• BURSTING STRENGTH (BUBBLE PACK) ASTM D 751-73 (MULLEN) 90 PSI
• TEAR STRENGTH (CROSS WOVEN POLYETHYLENE) ASTM D 1922 (TONGUE TEAR) 28 LBS. (WARP) 33 LBS. (FILL)
• SMOKE DEVELOPED INDEX ASTM E 84 (CLASS B)
• MAXIMUM USE TEMPERATURE 180° F
• MINIMUM USE TEMPERATURE -60° F
• WATER VAPOR PERMEANCE ASTM E 96 .002 PERMS
• CLASS A VAPOR BARRIER

R-value performance:

Insulation Vapor Barrier is composed of reflective polyethylene, high-density bubble pack and high-density closed-cell foam. The two outside polyethylene skins protect the interior insulation materials as well as provide excellent moisture protection. Insulation Vapor Barrier is designed to separate during installation.

R-values may increase or decrease slightly depending on airspace. Follow manufacturer’s instructions to receive maximum R-Value benefit. Insulation vapor barrier and the total wall assembly have been independently tested by a 3rd party testing facility for thermal resistance values in both summer and winter conditions. The values below are an average of the summer and winter results.

Insulation Vapor Barrier:
- Material - R 8.73
- With 3/4 inch wall system - R 12

** The precision of this testing is estimated to be 2.5% (ASTM C 518-10, Section 10.8). The precision for this composite with included air space is estimated to be 15%, IR emittance for the exterior surface of the panel that forms the enclosed air space has been determined in accordance with ASTM C 1371.

Technical Data Sheet
